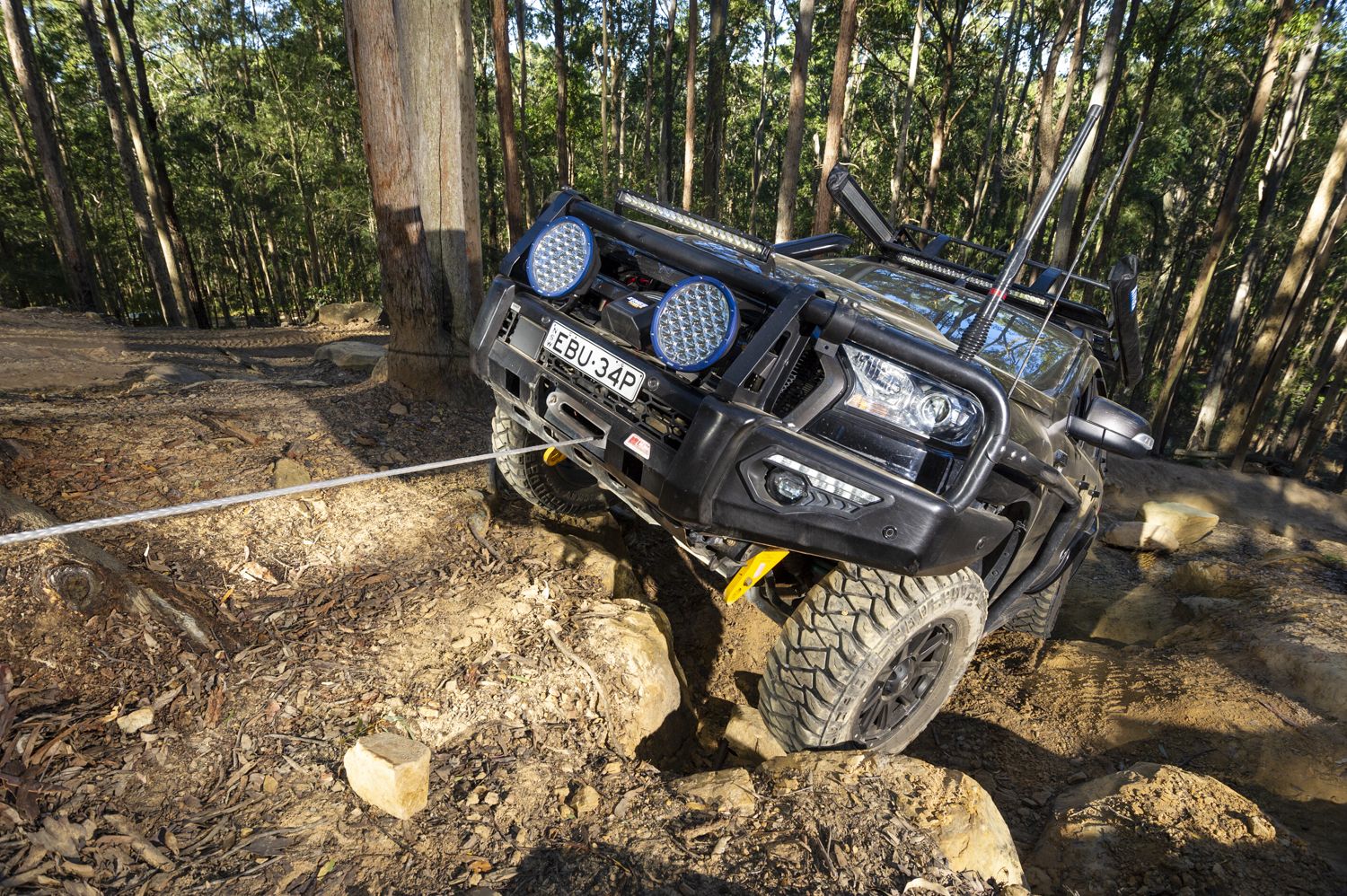

12,000lb Winch
7.2hp motor to get you out of the tightest of spots
2-year warranty
9.5mm X 26m Ultra High Molecular Weight Polyethylene Rope
Wired/Wireless Controller | Adventure Kings
Specifications
|
Rated Single Line Pull |
12,000lbs (5,443kgs) |
|
Motor |
7.2hp / 5.2kW Series Wound |
|
Main Body |
Sealed |
|
Control |
Wired / Wireless (3.7m detachable lead) |
|
Gear reduction ratio |
218:1 |
|
Clutch |
Keyway Cam. Rotatable housing |
|
Braking Action |
Substantially larger & re-engineered motor-located patent-pending brake |
|
Fairlead |
Included Hawse Fairlead |
|
Battery Leads |
2 gauge, 1.83m long |
|
Rope |
9.5mm X 26m Ultra High Molecular Weight Polyethylene |
|
Dimensions |
525mm x 160mm x 190mm |
|
Bolt pattern |
254mm x 114.3mm |
|
Net Weight |
27kg |
|
Warranty |
2 years |
DC12V Line Speed & AMP Draw (First Layer)
|
Rated Single Line Pull |
No Load |
4,000/1,814 |
8,000/3,629 |
12,000/5,443 |
|
Line Speed (ft/min) |
30.2 |
13.8 |
10 |
5.7 |
|
Line Speed (m/min) |
9.2 |
4.2 |
3.05 |
1.75 |
|
Motor 12V (Amps) |
65 |
165 |
272 |
420 |
12,000lb Line Pull & Cable Capacity
|
Layers of cable |
1 |
2 |
3 |
4 |
|
Rated line pull per layer (lbs/kg) |
12,000/5443 |
9210/4170 |
9030/3640 |
6894/3125 |
|
Cumulative cable capacity (ft/m) |
17/4.8 |
41/12 |
71/21 |
91.8/27.5 |
